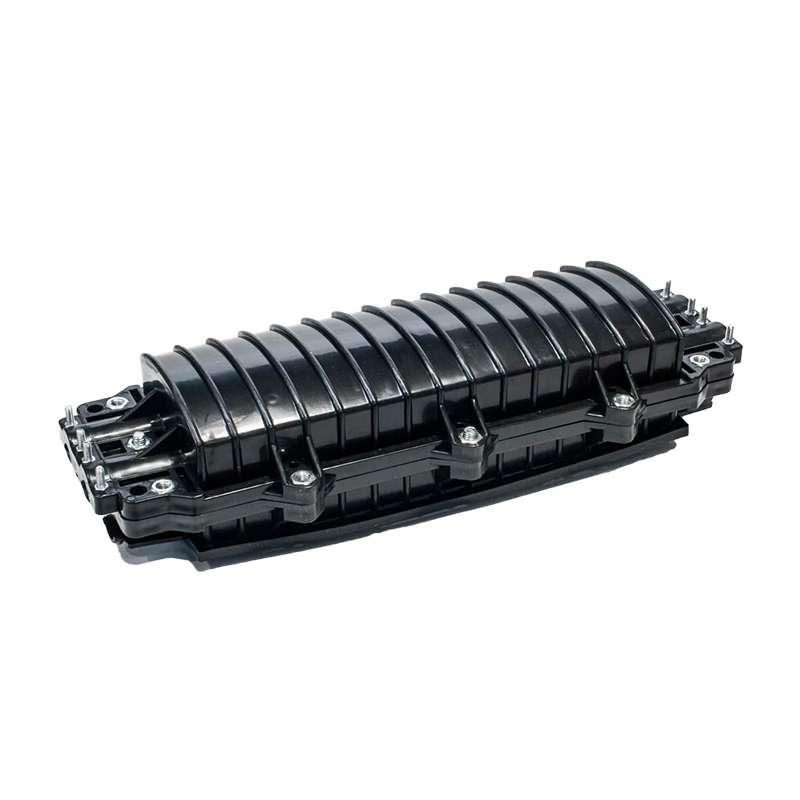

This inline closure is suitable for various applications, including aerial installation, underground placement, wall mounting, and cable ducts. The two shells are injection-moulded in a single mould to ensure a high degree of waterproofing
Ideal for cable repair
Suitable for through, branch, or mid-span joint locations
Easy to reopen
Includes termination and splicing kit
Compliant with RoHS regulations
| Characterstic | Value |
|---|---|
| Enclosures | from 24 to 48 joints |
| Cable input positions on each end | 2 |
| Integrated Seal | Airtight and waterproof |
| Applications | Aerial, underground, pipeline or directly buried |
| Underwater up to 1.5 m depth (IP68) | |
| Dimension | Length: 440 mm |
| Width: 170 mm | |
| Height: 110 mm | |
| Weight (g) | 1700 excluding any accessories |
| Max. external diameter fiber cables | 16 mm |
| Max. capacity of cards | 24 |
| Operating Temperature | -1°C a +45°C (during operation) |
| -50°C a +70°C (storage and transport) | |
| -40°C a +65°C (working temperature) |
| Code | Description | Dimension | Color |
|---|---|---|---|
| 83100-24 | Closure suitable for joining 24 fibres | 440x170x110 | Black |
| 83100-48 | Closure suitable for joining 48 fibres | 440x170x110 | Black |
