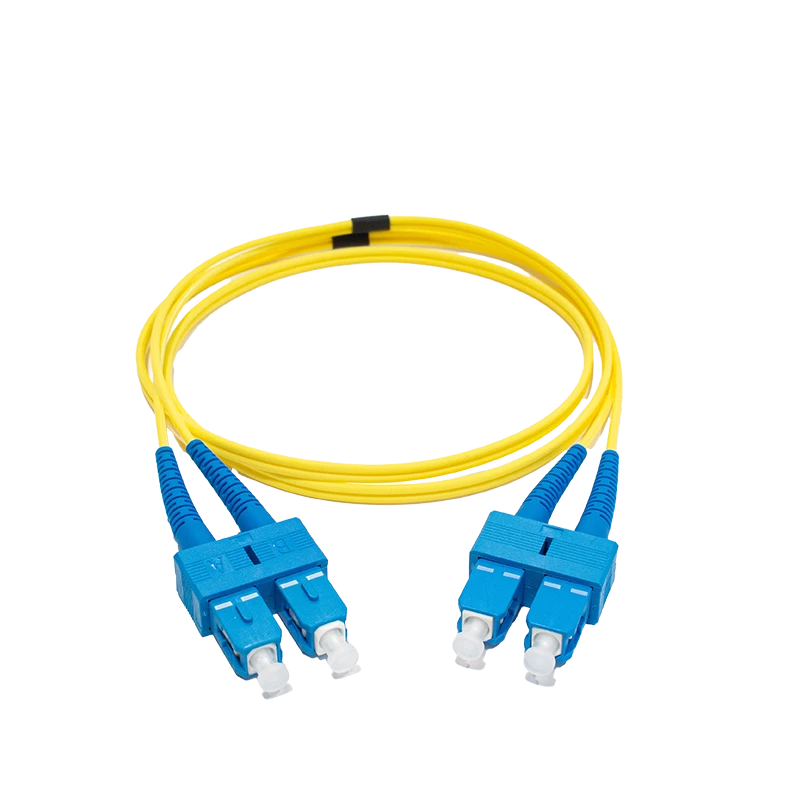

Fibre optic patch cords available in Simplex and Duplex OS2 singlemode versions, terminated in‑house with the most common connectors on the market, offered in both PC and APC configurations.
They come in standard lengths of 1.0 m, 2.0 m, 3.0 m, and 5.0 m, with the possibility of managing longer lengths.
| Characteristic | Value |
|---|---|
| Connectors | SC, LC, ST, FC e MTRJ Pc e Apc |
| Jacket | LSZH (Low Smoke Zero Halogen), yellow |
| Structure | Zipcord of 2 or 3 mm single or two-fibre |
| Standard | TIA/EIA 492AAAA e IEC60793-2-10 |
| Application | Gigabit oltre 275mt. A 850nm (SX), Legacy, Ethernet, Fast Ethernet e FDDI, Data Center, Support video, data and voice services |
| Insertion Loss | 0,30 dB |
| Attenuation (dB/km) | 3.0 @ 850nm / 0.8 @ 1300nm |
| Return Loss | 20 dB |
| Armor | Aramid |
| Tensile Strength | 1000 N |
| Operating Temperature | -20°C / +60°C |
| Minimum bending radius | Installed: 10D; Laying 20D |
| Connector | Version | Lenght 1mt. | Lenght 2mt. | Lenght 3mt. | Lenght 5mt. | Packaging |
|---|---|---|---|---|---|---|
| SC-SC | Duplex | 80154-1 | 80154-2 | 80154-3 | 80154-5 | Bag 1 pc |
| SC-FC | Duplex | 80155-1 | 80155-2 | 80155-3 | 80155-5 | Bag 1 pc |
| SC-ST | Duplex | 80156-1 | 80156-2 | 80156-3 | 80156-5 | Bag 1 pc |
| FC-FC | Duplex | 80161-1 | 80161-2 | 80161-3 | 80161-5 | Bag 1 pc |
| FC-ST | Duplex | 80162-1 | 80162-2 | 80162-3 | 80162-5 | Bag 1 pc |
| ST-ST | Duplex | 80166-1 | 80166-2 | 80166-3 | 80166-5 | Bag 1 pc |
| LC-LC | Duplex | 80169-1 | 80169-2 | 80169-3 | 80169-5 | Bag 1 pc |
| LC-SC | Duplex | 80170-1 | 80170-2 | 80170-3 | 80170-5 | Bag 1 pc |
| LC-FC | Duplex | 80172-1 | 80172-2 | 80172-3 | 80172-5 | Bag 1 pc |
| LC-ST | Duplex | 80174-1 | 80174-2 | 80174-3 | 80174-5 | Bag 1 pc |
| SC-SC | Simplex | 80098-1 | 80098-2 | 80098-3 | 80098-5 | Bag 1 pc |
| SC-FC | Simplex | 80099-1 | 80099-2 | 80099-3 | 80099-5 | Bag 1 pc |
| SC-ST | Simplex | 80100-1 | 80100-2 | 80100-3 | 80100-5 | Bag 1 pc |
| FC-FC | Simplex | 80101-1 | 80101-2 | 80101-3 | 80101-5 | Bag 1 pc |
| FC-ST | Simplex | 80106-1 | 80106-2 | 80106-3 | 80106-5 | Bag 1 pc |
| ST-ST | Simplex | 80110-1 | 80110-2 | 80110-3 | 80110-5 | Bag 1 pc |
| LC-LC | Simplex | 80113-1 | 80113-2 | 80113-3 | 80113-5 | Bag 1 pc |
| LC-SC | Simplex | 80114-1 | 80114-2 | 80114-3 | 80114-5 | Bag 1 pc |
| LC-FC | Simplex | 80116-1 | 80116-2 | 80116-3 | 80116-5 | Bag 1 pc |
| LC-ST | Simplex | 80118-1 | 80118-2 | 80118-3 | 80118-5 | Bag 1 pc |
