The Cat.6A ON NETT range is based on a comprehensive and diversified offering. The RJ45 socket ensures perfect cable termination using the dedicated Impact Tool. All Keystone jacks in the ON NETT range provide guaranteed performance characteristics for each individual component.
| Characteristic | Value |
|---|---|
| Dimension | Keystone |
| Mix | ABS high mechanical resistance flame retardant |
| IDC Terminals | nickel-plated phosphor bronze 50/60 micron |
| Contacts | nickel with 50/60 micron gold |
| Sticker | identifies connections to be performed according to EIA/TIA 568A or B |
| N° Plug-in insertions | 750 |
| Section of conductors (AWG) | 22-26 |
| Insulation resistance (m ohm) | 500 |
| Contact resistance (m ohm) | 750 |
| Maximum current allowed | 1,5 A |
| Color | White |
| Standards | IEC 60603-7-5 (Standard on RJ45 connectors) |
| ISO 11801 2° ed. (general systems) | |
| EIA/TIA 568B | |
| EN 50173 2 ed. (General wiring) |
| Code | Description | Color | Packing | Packaging |
|---|---|---|---|---|

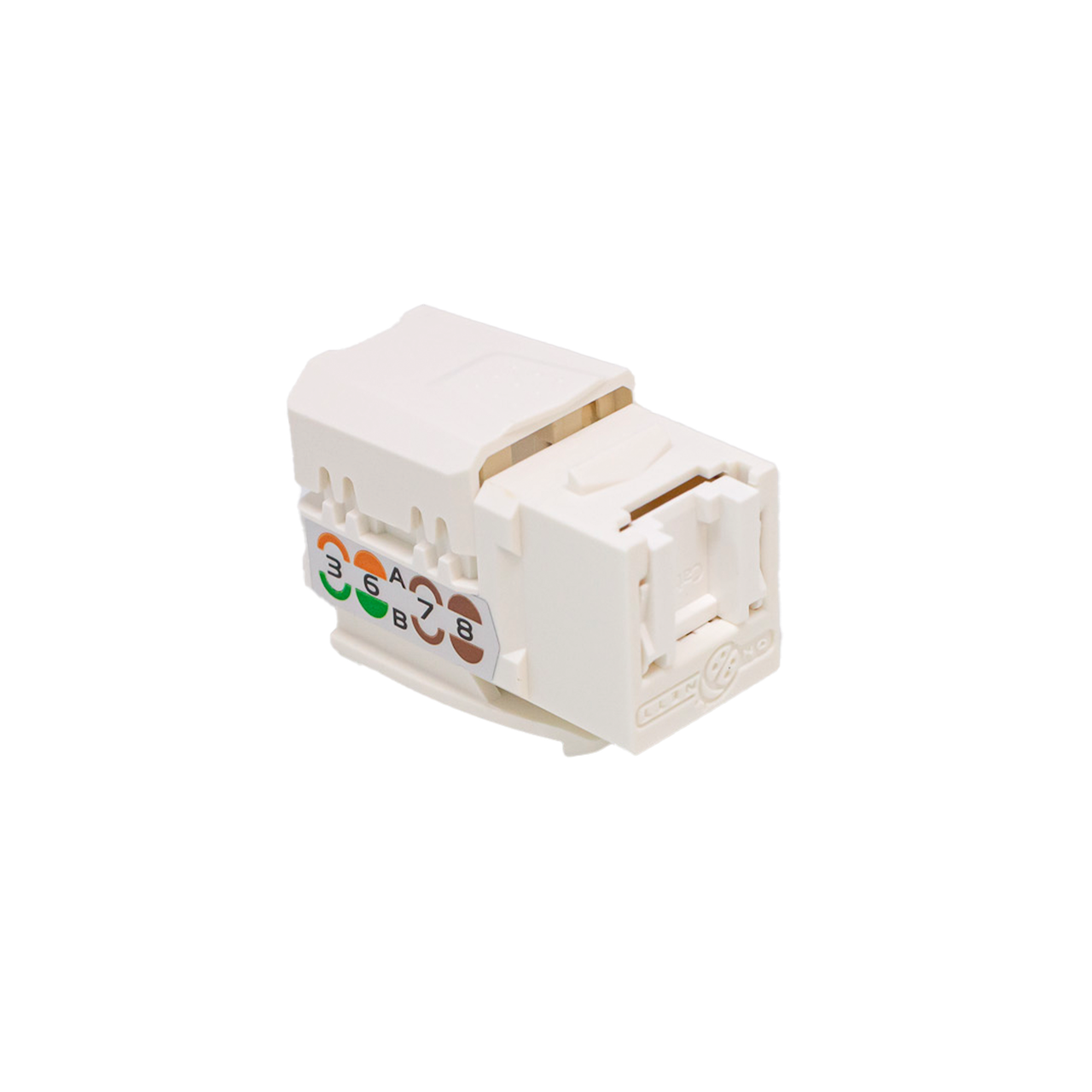

| 60185 | RJ45 U/UTP cat. 6A socket | White | Bag 1 pc | 12 pcs |
